Download OSM data

Download OpenStreetMap data

You can use the following two methods to download the OpenStreetMap data:

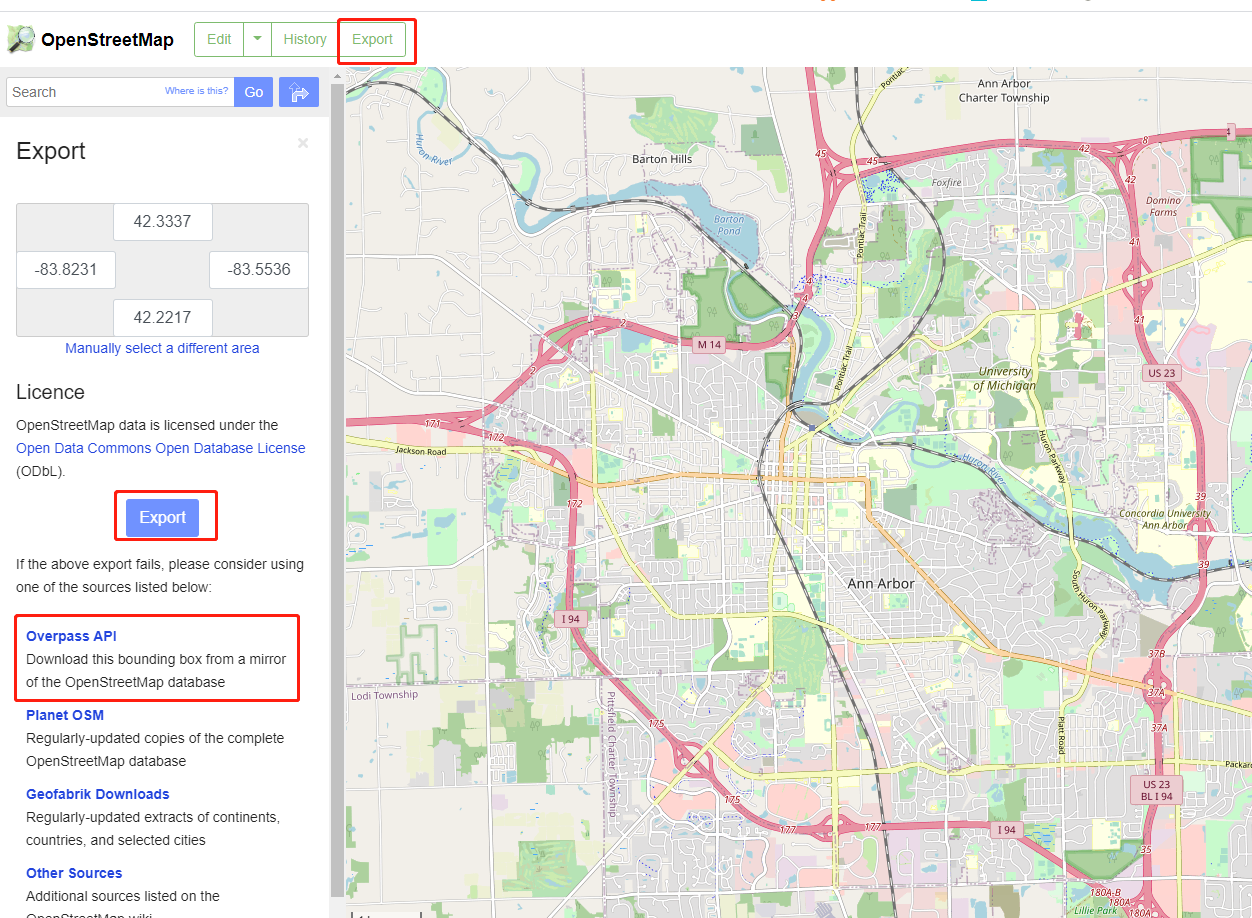

1. OpenStreetMapOfficial: choose Export -> OverpassAPI (otherwise the size of the bounding box size is limited).

OpenStreetMap Official

By this way, you will get the complete OSM data (xml), then you can use osm_filter.osm_way_filter() to get the layer you need.

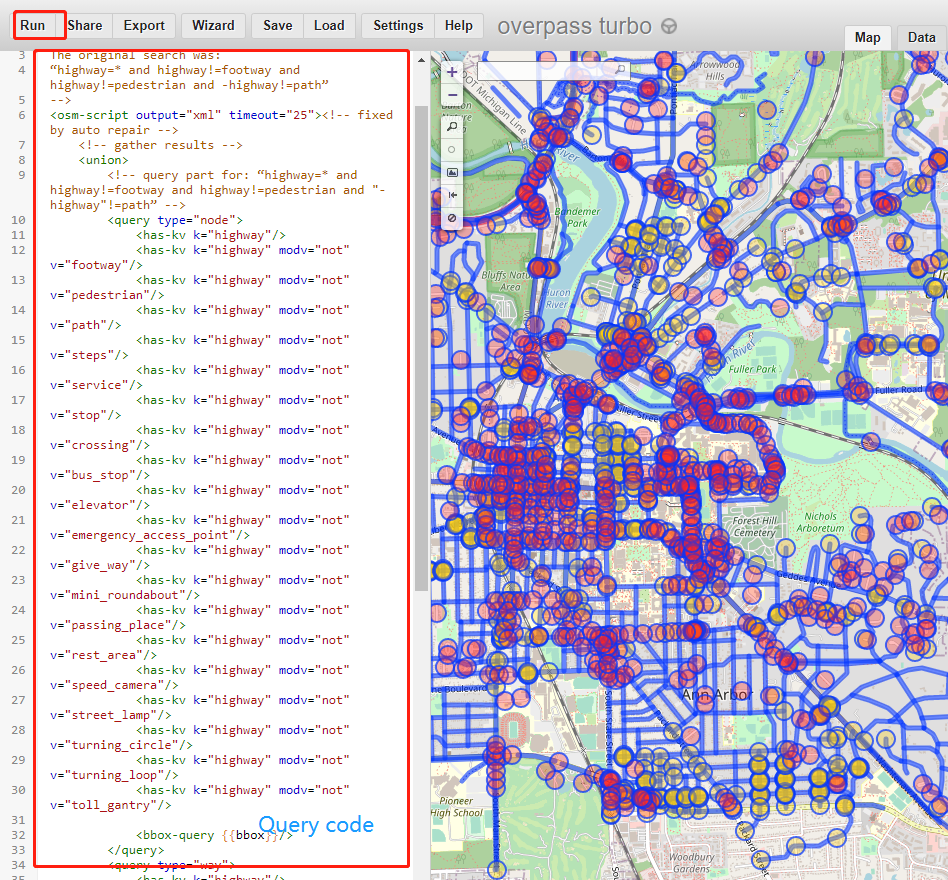

2. Overpass API (recommended): directly use overpass API to download the layer you need. The sample query code is attached in the appendix Appendix A: Query code.

Overpass API

In this way, you will directly get the layer you need.

Parse OpenStreetMap data

The downloaded OpenStreetMap xml file can be parsed using the mtldp.mtlmap.build_network_from_xml():

1
2
import mtldp.mtlmap as mtlmap
network = mtlmap.build_network_from_xml("*.osm")

This will return you a well-structured class mtldp.mtlmap.Network.

Appendix A: Query code

Here is an example of the query code using the OverpassAPI.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
<!--
This has been generated by the overpass-turbo wizard.
The original search was:
“highway=* and highway!=footway and highway!=pedestrian and -highway!=path”
-->
<osm-script output="xml" timeout="25"><!-- fixed by auto repair -->
    <!-- gather results -->
    <union>
        <!-- query part for: “highway=* and highway!=footway and highway!=pedestrian and "-highway"!=path” -->
        <query type="node">
            <has-kv k="highway"/>
            <has-kv k="highway" modv="not" v="footway"/>
            <has-kv k="highway" modv="not" v="pedestrian"/>
            <has-kv k="highway" modv="not" v="path"/>
            <has-kv k="highway" modv="not" v="steps"/>
            <has-kv k="highway" modv="not" v="service"/>
            <has-kv k="highway" modv="not" v="stop"/>
            <has-kv k="highway" modv="not" v="crossing"/>
            <has-kv k="highway" modv="not" v="bus_stop"/>
            <has-kv k="highway" modv="not" v="elevator"/>
            <has-kv k="highway" modv="not" v="emergency_access_point"/>
            <has-kv k="highway" modv="not" v="give_way"/>
            <has-kv k="highway" modv="not" v="mini_roundabout"/>
            <has-kv k="highway" modv="not" v="passing_place"/>
            <has-kv k="highway" modv="not" v="rest_area"/>
            <has-kv k="highway" modv="not" v="speed_camera"/>
            <has-kv k="highway" modv="not" v="street_lamp"/>
            <has-kv k="highway" modv="not" v="turning_circle"/>
            <has-kv k="highway" modv="not" v="turning_loop"/>
            <has-kv k="highway" modv="not" v="toll_gantry"/>

            <bbox-query {{bbox}}/>
        </query>
        <query type="way">
            <has-kv k="highway"/>
            <has-kv k="highway" modv="not" v="footway"/>
            <has-kv k="highway" modv="not" v="pedestrian"/>
            <has-kv k="highway" modv="not" v="path"/>
            <has-kv k="highway" modv="not" v="steps"/>
            <has-kv k="highway" modv="not" v="service"/>


            <bbox-query {{bbox}}/>
        </query>
        <query type="relation">
            <has-kv k="highway"/>
            <has-kv k="highway" modv="not" v="footway"/>
            <has-kv k="highway" modv="not" v="pedestrian"/>
            <has-kv k="highway" modv="not" v="path"/>
            <has-kv k="highway" modv="not" v="steps"/>
            <has-kv k="highway" modv="not" v="service"/>


            <bbox-query {{bbox}}/>
        </query>
    </union>
    <!-- print results -->
    <print mode="meta"/><!-- fixed by auto repair -->
    <recurse type="down"/>
    <print mode="meta" order="quadtile"/><!-- fixed by auto repair -->
</osm-script>
